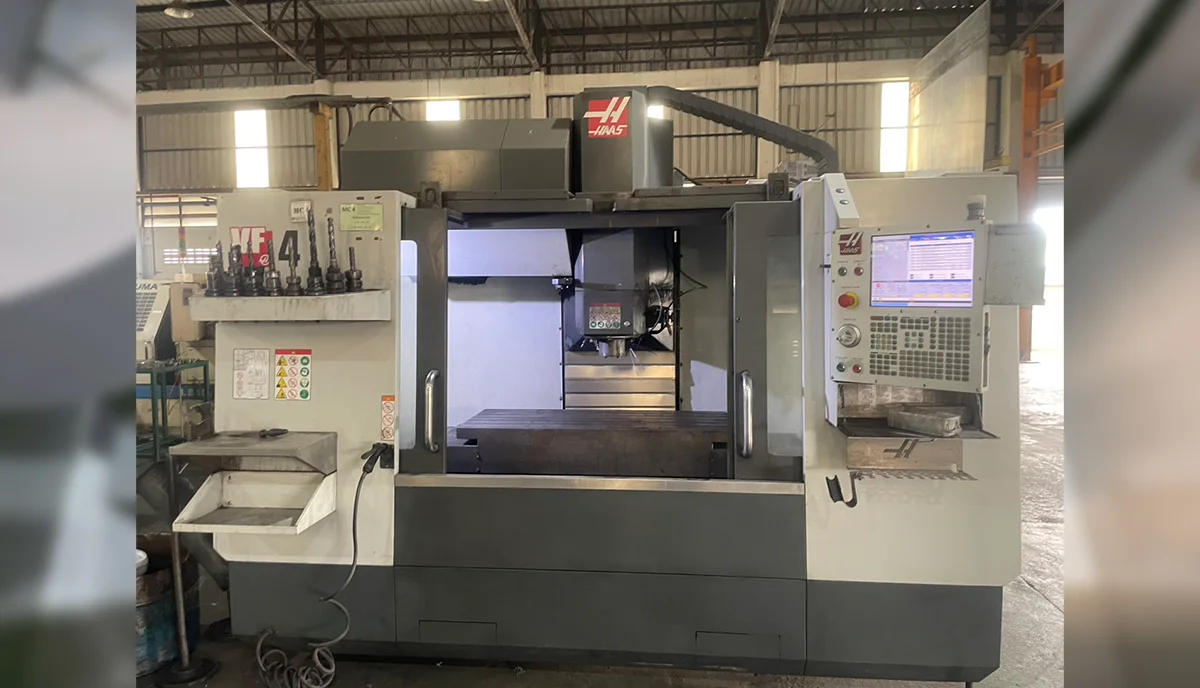

Haas CNC, Super Speed Vertical Machining center,
50" x 20" x 25" (1270 x 508 x 635 mm (xyz),
40 taper, 30-hp (22.4 kW) vector drive 8,100 rpm,
inline direct drive, 20-station carousel tool changer.
Basic Equipment
- Standard Memory, 1 GB.
- Microprocessor Quad-Core.
- Complete Machine Enclosure with Sliding Doors.
- Automatic Tool Change for 20 Tools.
- Single Electronic Handwheel.
- Automatic Central Lubrication.
- Air/Oil Injection for spindle bearing.
- Air Dryer.
- 1000 ipm (25.4 m/min) rapids.
- Water-Cooled spindle.
- 55 Gallon (208 liter) Coolant Tank with 3/4 hp (0.6 kW) pump.
- 15" color LCD monitor.
- USB Port.
- Memory Lock Keyswitch.
- Ethernet Interface.
- Early power failure detection module.
- Rigid Tapping.
- Wash Down Kit.
- Work Lamp.
- Taper Blow Out.
- Set of Levelling pads and Levelling bolts.
- Instuction Manual.
Included Options
- 10,000-rpm Spindle, 40 taper, 30 hp (22.4 kW)
vector drive, inline direct-drive.
- Side-Mount Tool Changer, 40 taper, 30+1 tools.
- High-Speed Machining.
- Chip Auger.
- CNC Control Cabinet Cooler.
- 10 Pull Studs, BT40.
- BT40 Option for 30+1 Station Side-Mount Tool Changer.
- Internal High Voltage Isolation Transformer,
for 380-480V operation.
