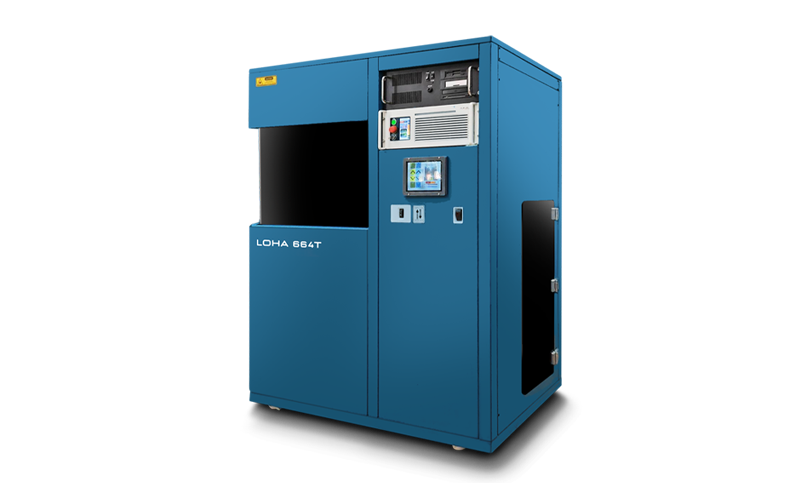

LOHA 664T

Metel 3D Printer

Can print a various of metals such as Inconel , Steel , Stainless steel and Titanium
Laser source is air cooled type. Easy to maintain.
Maximum build volume 60 x 60 X 40 mm.
The maximum layer high of each printing layer is up to 100 micron and as low as 50 microns.
The design is correct according to ergonomic principles.
With a hard blade this makes it possible to precisely control the thickness of the metal powder in each layer.
Safety, the machine will stop working if the blade does not park to a safe point.
Work within the melting room can be monitored at all times through CCTV.
Use an electrical system of single phase 220V.

ขอใบเสนอราคา

Metal 3D printer for advanced industrial can create small parts that has a complex structure inside, which cannot be created with traditional machines.
High printing success rate with a special type of printing base plate, make first layer printing attaches firmly to the printing table. The workpiece therefore does not fall off or overthrow during printing. Remove the workpiece from the print table without using Wire Cut. With a special type of printing base plate, makes removing the workpiece from the print table easy. Just use basic tools that are commonly available on the market, such as a hand grinder. That's enough. Save time and costs are greatly reduced
Small inert gas control chamber It is designed to have a small inert gas control chamber only at the melting area. Therefore, the rate of Inert gas consumption is very low. and results in lower production costs.
Powder Homogenization System : PHS. Density of metal powder is very important. The surface of workpiece will defect if the density of metal powder in feeder bath is non-homogeneous. We design this function for protection.

SPECIFICATION

Printing Build Volume

: 60 x 60 x 40 mm

Layer Resolution Setting

: 0.05 - 0.1 mm

Laser source

: Fiber Laser, 300 W

Shielding gases

: Argon

Material

: Inconel, Steel , Stainless steel, Titanium

Power source

: AC Input 220 V

Inputs

: SDcard

File Types

: .STL / .OBJ

Supported OS

: Windows (7/8/10/11)

Machine Size

: 1,400 x 815x 1,780 mm

Machine Weight

: approx. 750 kg

Interior Lighting

: LED
