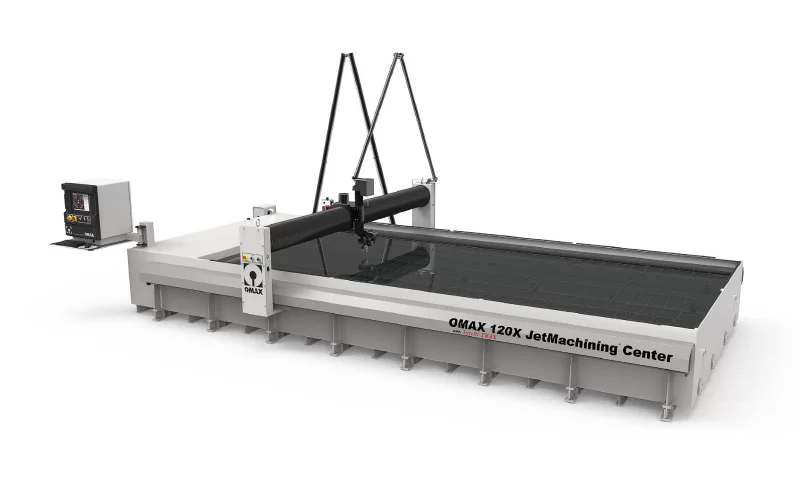

OMAX 120X

The large format bridge-style 120X Series JetMachining® Centers are ideal for full scale production of large or

multiple part projects. Available in a variety of machine lengths, each model features the advanced patent-pending

high-precision Intelli-TRAX® linear drive technology designed exclusively for the abrasive waterjet environment. With

innovative accessories such as the DualBRIDGE, Tilt-A-Jet®, A-Jet®, and Rotary Axis, the 120X Series is a robust and

versatile system that provides superior performance to maximize productivity and profitability.

• Fastest cutting speeds and best precision compared to any

abrasivejet in the industry and is backed by our exclusive Intelli-

MAX® Software with real world cutting data

• Programmable Motorized Z-Axis with a precision OMAX

MAXJET®5i Nozzle Assembly can boost cutting productivity and

process efficiency

• Increase machining capacity with optional DualBRIDGE system

• Low maintenance, high reliability scissor-style hard plumbing

• Drive system sealed against water, dirt, and grit.

• High efficiency Generation 4 EnduroMAX® pump systems available

up to 100 hp with operating efficiencies up to 85%

• Rapid Water Level Control for quiet and clean submerged cutting

• Bulk Abrasive Feed Assembly transports garnet from the assembly’s

large hopper into the Zero Downtime Hopper located at the

Motorized Z-Axis

• Shipped pre-assembled and factory-tested

• Machines a wide range of materials and thicknesses, from metals

and composites to glass and plastics

• Does not create heat-affected zones or mechanical stresses

• No tool changes and minimal fixturing reduces setup by 50% or

more

• No additional water required for pump cooling

• Small, efficient footprint for minimal floorspace utilization

• Leaves behind a satin-smooth edge, reducing secondary operations

• No noxious gases, liquid and oils used in, or caused by, the

machining process

• EnduroMAX pump technology delivers the highest nozzle

horsepower in the industry for faster and more efficient cutting

• Completes most work below 80 dBA at one meter for submerged

cutting

• Environmentally “green” system with quiet and clean operation with

low electrical consumption

• Highly robust and reliable pump design capable of over 1000

hours between maintenance
