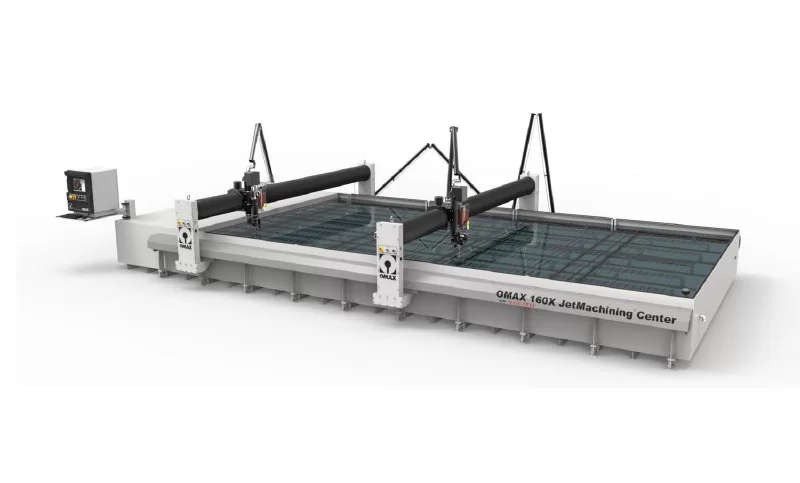

OMAX 160X

Abrasive waterjet machining takes on a new dimension with the OMAX® 160X JetMachining® Center. The newly

developed modular 160X Series ensures that, when it comes to cutting area and performance, you get more of both.

The modular design tailors the 160X to your specific space requirements, while the exceptional drive system maximizes

performance: Intelli-TRAX® drive technology, an innovative system designed for the abrasive waterjet environment,

is durable, reliable, and precise. Features such as EnduroMAX® technology and Intelli-MAX® software, along with

optional accessories such as the multi-axis A-Jet® and the DualBRIDGE system, all are designed to deliver lower

operating costs and increased profits with the 160X JetMachining Center.

• Fastest cutting speeds and best precision compared to any

abrasivejet in the industry

• Backed by our exclusive Intelli-MAX Software with real world cutting

data

• Programmable Motorized Z-Axis with a precision OMAX

MAXJET®5i Nozzle Assembly boosts cutting productivity and

process efficiency

• Increase machining capacity with optional DualBRIDGE system

• Low maintenance, high reliability scissor-style hard plumbing

• Drive system sealed against water, dirt, and grit

• High efficiency EnduroMAX pump systems available up to 100 hp

with operating efficiencies up to 85%

• Rapid Water Level Control for quiet and clean submerged cutting

• Bulk Abrasive Feed Assembly transports garnet from the assembly’s

large hopper into the Zero Downtime Hopper located at the

Motorized Z-Axis

• Factory-tested for quality and precision

• Does not create heat-affected zones or mechanical stresses

• Optional 5th Generation 100 hp pump with EnduroMAX

technology delivers exeptional power and the smoothest jet stream

• Machines a wide range of materials and thicknesses, from metals

and composites to glass and plastics

• No additional water required for pump cooling

• Efficient footprint for optimum floorspace utilization

• Leaves behind a satin-smooth edge, reducing secondary operations

• No noxious gases, liquid and oils used in, or caused by, the

machining process

• EnduroMAX pump technology delivers the highest Jet Power in the

industry for faster and more efficient cutting

• Completes most work below 80 dBA

• Environmentally “green” system with quiet and clean operation with

low electrical consumption

• High reliability pump design capable of over 1,000 hours between

maintenance intervals

• No tool changes and minimal fixturing reduces setup by 50% or

more
