DM-2

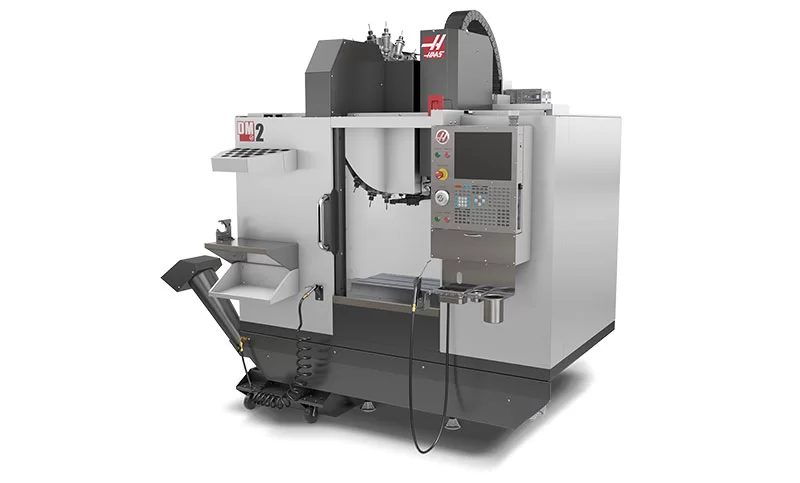

The DM-2 is a compact, high-speed machining center built with proven Haas
components and sub-assemblies. It is identical in construction and
specifications to the DM-1, with the addition of 8" of X-axis travel and
table length. The machine’s shop-proven 40-taper inline spindle, 18+1 tool
changer, high acceleration rates, fast rapids, and impressive short
tool-change times make the DM-2 an attractive high-productivity machining
center.The DM-2 allows shops to use their existing 40T tooling and enjoy the
benefits of a larger spindle, and its lean-style, compact footprint makes
very efficient use of valuable shop floor space.

More X-axis travel and longer table than the DM-1
Powerful 40-taper inline direct-drive spindle
High-productivity machining center with a compact footprint
Made in the USA





Travels

X,Y,Z Axis
: 711 x 406 x 394 mm

Spindle

Max Rating
: 11.2 kW
Max Speed
: 10,000 rpm
Max Torque
: 62.0 Nm @ 1,700 rpm
Drive System
: Inline Direct-Drive
Taper
: CT or BT 40
Bearing Lubrication
: Air / Oil Injection
Cooling
: Air Cooled

Table

Width x Length
: 864 x 381 mm
T-Slot Width
: 15.90 mm to 16.00 mm
T-Slot Center Distance
: 125 mm
Number of Std T-Slots
: 3
Max Weight on Table (evenly distributed)
: 113 kg

Feedrates

Max Cutting
: 30.5 m/min
Rapids on X, Y, Z
: 61.0 m/min

Axis Motors

Max Thrust X
: 11,343 N
Max Thrust Y
: 11,343 N
Max Thrust Z
: 18,683 N

Tool Changer

Type
: SMTC
Capacity
: 18+1
Max Tool Diameter (full)
: 64 mm
Chip-to-Chip (avg)
: 1.6 s

General

Coolant Capacity
: 208 L

Air Requirements

Air Required
: 113 L/min @ 6.9 bar
Inline Air Hose
: 3/8 in
Coupler (Air)
: 3/8 in
Air Pressure Min
: 5.5 bar

Dimensions-Shipping

Pallet
: 231 cm x 254 cm x 249 cm
Weight
: 2,427.0 kg

Electrical Specification

Input Voltage, Amps (3 Phase) - Low
: 220 VAC, 40A
Input Voltage, Amps (3 Phase) - High
: 440 VAC, 20A
