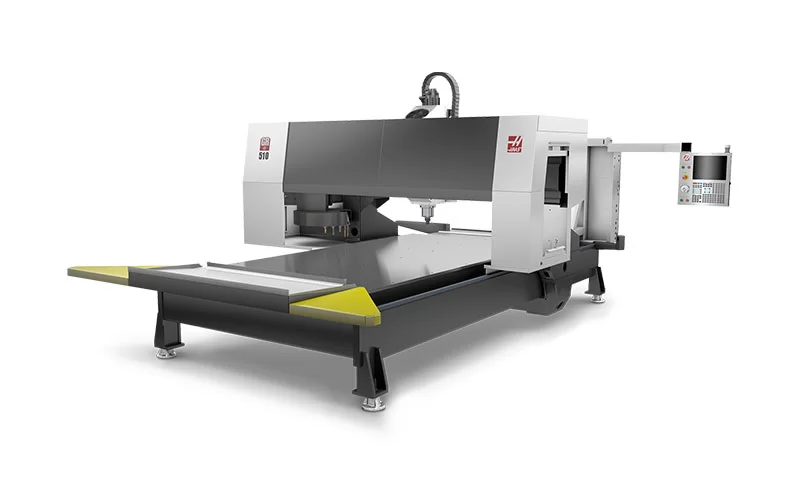

GR-510

The Haas GR Series gantry routers have the power to cut aluminum and other
metals, as well as the speed to cut plastics and other light materials.
These machines easily handle large sheets of material, or can machine small
parts by the thousand. The rigid steel construction of the GR Series
provides a very stable cutting platform, and a 1" thick aluminum table is
standard. A traveling guard protects the operator from chips and coolant,
and keeps the workspace clean.

Rigid-steel construction
Traveling guard for chip and coolant containment
1" thick aluminum table
Made in the USA





Travels

X,Y,Z Axis
: 3,073 x 1,549 x 279 mm

Spindle

Max Rating
: 11.2 kW
Max Speed
: 8,100 rpm
Max Torque
: 65.0 Nm @ 1500 rpm
Drive System
: Direct Speed, Belt Drive
Taper
: CT or BT 40

Table

Width x Length
: 1,346 x 3,099 mm
Max Weight on Table (evenly distributed)
: 2,722 kg
Between Columns
: 1,575 mm

Feedrates

Max Cutting
: 20.3 m/min
Rapids on X
: 20.3 m/min
Rapids on Y
: 53.3 m/min
Rapids on Z
: 27.9 m/min

Axis Motors

Max Thrust X
: 11,210 N
Max Thrust Y
: 4,537 N
Max Thrust Z
: 9,119 N

Tool Changer

Type
: Carousel
Capacity
: 10
Max Tool Diameter (full)
: 89 mm
Max Tool Weight
: 5.4 kg

General

Coolant Capacity
: 360 L

Air Requirements

Air Required
: 113 L/min @ 6.9 bar
Inline Air Hose
: 3/8 in
Coupler (Air)
: 3/8 in
Air Pressure Min
: 5.5 bar

Dimensions-Shipping

Pallet
: 5,240 x 2,820 x 2,820 mm
Weight
: 8,800.0 kg

Electrical Specification

Input Voltage, Amps (3 Phase) - Low
: 220 VAC, 40A
Input Voltage, Amps (3 Phase) - High
: 440 VAC, 20A
