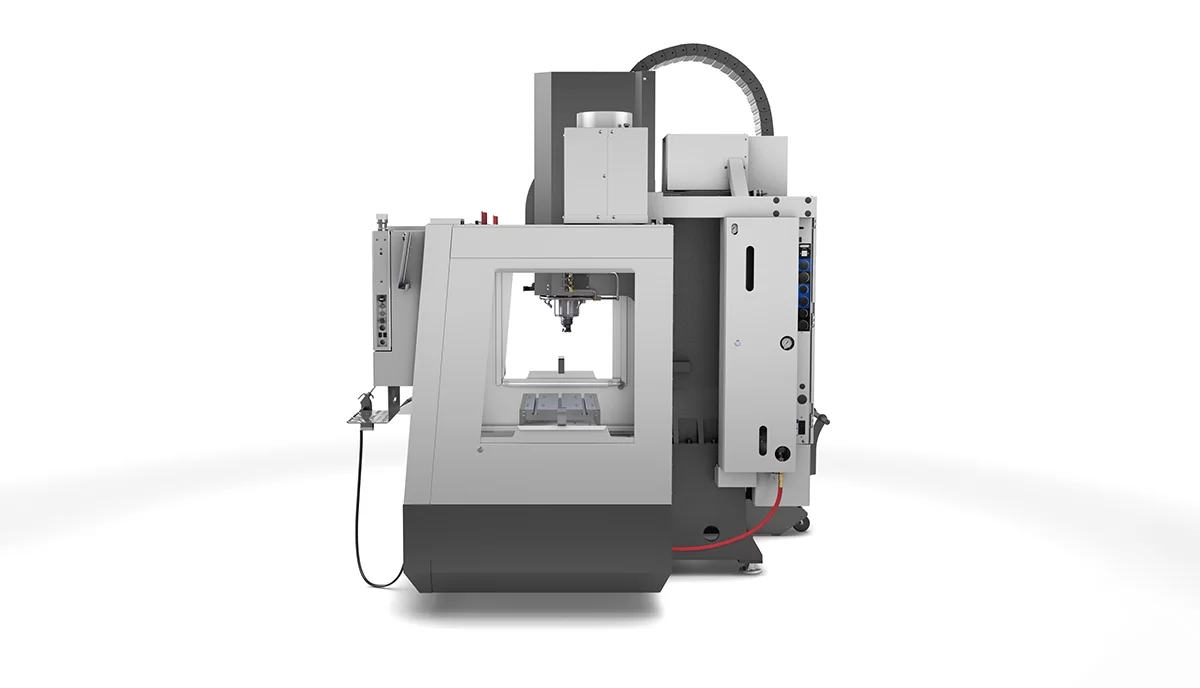

VF-1

Every VF Series vertical machining center provides outstanding features at
an excellent price, and features a wide range of available options to
customize your machine to your exact needs. All Haas machines are designed
and built in Oxnard, California, USA. The VF-1 is the foundation of our popular VF Series machines.

ขอใบเสนอราคา

High-power, direct-drive spindle
Customizable to your needs
Our flagship model
Made in the USA

Travels

X,Y,Z Axis

: 508 x 406 x 508 mm

Spindle

Max Rating

: 22.4 kW

Max Speed

: 8,100 rpm

Max Torque

: 122.0 Nm @ 2000 rpm

Max Torque w/opt Gearbox

: 339 Nm @ 450 rpm

Drive System

: Inline Direct-Drive

Taper

: CT40 | BT40 | HSK-A63

Bearing Lubrication

: Air / Oil Injection

Cooling

: Liquid Cooled

Table

Width x Length

: 356 x 660 mm

T-Slot Width

: 15.90 mm to 16.00 mm

T-Slot Center Distance

: 125 mm

Number of Std T-Slots

: 3

Max Weight on Table (evenly distributed)

: 1,361 kg

Feedrates

Max Cutting

: 16.5 m/min

Rapids on X, Y, Z

: 25.4 m/min

Axis Motors

Max Thrust X

: 11,343 N

Max Thrust Y

: 11,343 N

Max Thrust Z

: 18,683 N

Tool Changer

Type

: Carousel

Capacity

: 20

Max Tool Diameter (full)

: 89 mm

Max Tool Weight

: 5.4 kg

Tool-to-Tool (avg)

: 4.2 s

Chip-to-Chip (avg)

: 4.5 s

General

Coolant Capacity

: 208 L

Air Requirements

Air Required

: 113 L/min @ 6.9 bar

Inline Air Hose

: 3/8 in

Coupler (Air)

: 3/8 in

Air Pressure Min

: 5.5 bar

Dimensions-Shipping

Pallet

: 2,490 x 2,320 x 2,540 mm

Weight

: 3,539.0 kg

Electrical Specification

Input Voltage, Amps (3 Phase) - Low

: 220 VAC, 70A

Input Voltage, Amps (3 Phase) - High

: 440 VAC, 35A
