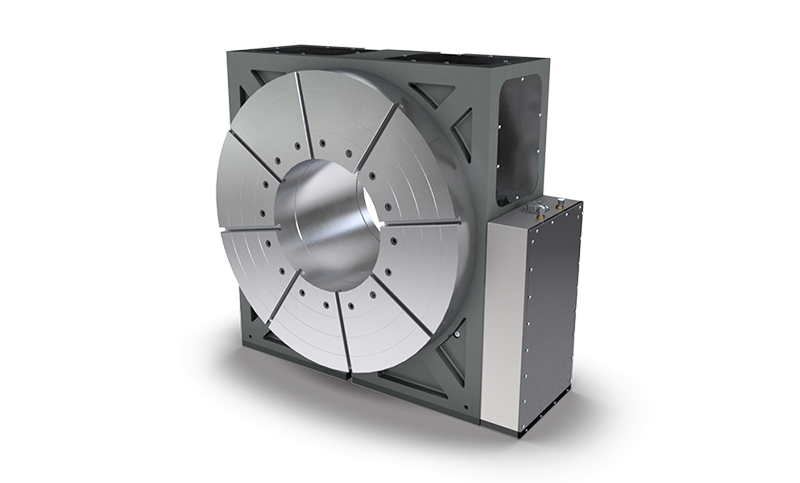

HRT1000

Our extra-large HRT Series rotary tables are perfect for holding large workpieces or fixtures for 4-axis machining. These high-capacity, heavy-duty tables mount vertically, and feature large through-holes for bar feeding and special fixture-locating requirements. Chucks and fixtures can easily be bolted to the table using the precision T-slots.

ATTENTION! This rotary table must be operated in the vertical position (with the platter face perpendicular to the ground). Do not operate horizontally (with the platter face parallel to the ground).

Note: Requires a Haas mill with 4th-axis drive and NGC software version 100.19.000.1100 or later for full 4th-axis operation. Stand-alone operation requires a Haas rotary control box shipped after November 10, 2021, with software version 26.32 or newer.

ขอใบเสนอราคา

Add 4-axis capabilities to your machine
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities
Heavy-duty design
Made in the USA

Platter

Platter Diameter

: 1000 mm

Max Weight on Platter (w/support)

: 2582.8 kg

Max Weight on Platter (unsupported)

: 1291.4 kg

Number of Std T-Slots

: 8 @ 45º

Spindle

Max Speed

: 35 °/sec

Max Torque

: 2712 Nm

Runout Max

: 0.038 mm

Center Height

: 603.25 mm

Pilot Bore Diameter

: 444.500 mm

Backlash

: 30 arc-sec

Brake Torque @ 100 psi/6.9 bar

: 18981 Nm

Gear Ratio

: 150:01:00

Timing

: 2.5:1

Worm Gear Dia

: 777 mm

Indexing

Accuracy (±)

: ± 15 arc-sec

Repeatability

: 10 arc-sec

Backlash

: 30 arc-sec

Resolution

: 0.001 °

Worm Gear Dia

: 777 mm

Max Rotation/Step (with rotary control)

: 999.999 °

Air Requirements

Air Pressure Max

: 10.3 bar

General - B (rotary)

Operating Temp (max ambient)

: 38 °C

Dimensions - Shipping

Export Crate

: 145 cm x 140 cm x 79 cm

Weight

: 2663.0 kg
