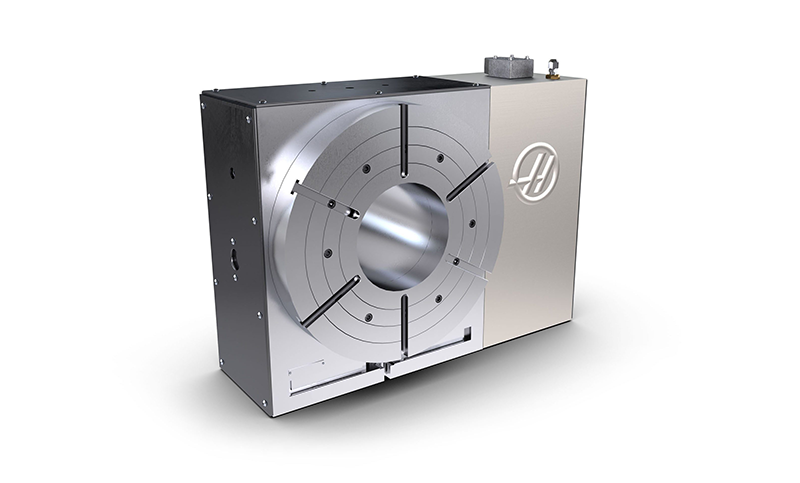

HRT450

For holding medium to large parts or fixtures, the HRT Series of T-slotted
rotary tables is the answer. This high-capacity, heavy-duty table mounts
vertically, and features a large through-hole for bar feeding and special
fixture-locating requirements. Chucks and fixtures can easily be bolted to
the table using the six precision T-slots.ATTENTION! This rotary table must be operated in the vertical position
(with the platter face perpendicular to the ground). Do not operate
horizontally (with the platter face parallel to the ground).Note: Requires a Haas mill with 4th-axis drive and NGC software version 100.19.000.1100 or later for full 4th-axis operation. Stand-alone operation requires a
Haas rotary control box shipped after November 10, 2021, with software version 26.32 or newer.

ขอใบเสนอราคา

Add 4-axis capabilities to your machine
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities
Heavy-duty design
Made in the USA

Platter

Platter Diameter

: 450 mm

Max Weight on Platter (w/support)

: 385.6 kg

Max Weight on Platter (unsupported)

: 192.8 kg

Number of Std T-Slots

: 6 @ 60°

Spindle

Max Speed

: 50 °/sec

Max Torque

: 542 Nm

Runout Max

: 0.038 mm

Center Height

: 292.10 mm

Backlash

: 30 arc-sec

Brake Torque @ 100 psi/6.9 bar

: 1830 Nm

Gear Ratio

: 72:01:00

Timing

: 3:1

Indexing

Accuracy (±)

: ± 15 arc-sec

Repeatability

: 10 arc-sec

Resolution

: 0.001 °

Worm Gear Dia

: 343 mm

Max Rotation/Step (with rotary control)

: 999.999 °

General

Power Requirement

: 115 VAC ± 10% @ 15 A

Operating Temp (max ambient)

: 38 °C

Air Requirements

Air Pressure Max

: 10.3 bar

Dimensions - Shipping

Export Crate

: 97 cm x 49 cm x 84 cm

Weight

: 422.0 kg
