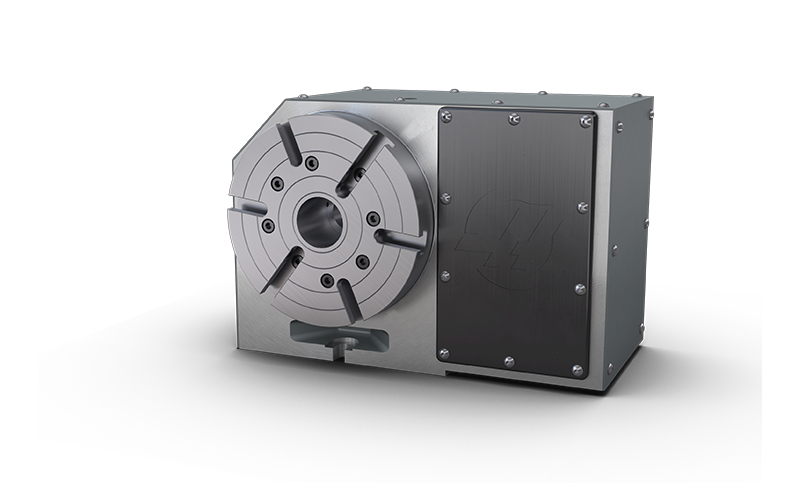

HRT210SS

Our HRT210SS Super Speed rotary table uses a heavy-duty cycloidal drive
system to provide a maximum indexing speed of 490° per second – nearly five
times the speed of our standard HRT210. The unit’s compact size and high
speed make it the perfect complement to our VF-2SS and other high-speed
Haas machines.NOTE:Requires a Haas mill with 4th-axis drive andNGC software version 100.19.000.1100or later for full 4th-axis operation. Not available for stand-alone
operation.ATTENTION! Not compatible with CHC machines, due to cycloidal gear drive.

ขอใบเสนอราคา

Add 4-axis capabilities to your machine
High-speed 490°/sec indexing
Heavy-duty cycloidal drive system
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities
Made in the USA

Platter

Platter Diameter

: 210 mm

Max Weight on Platter (w/support)

: 68.0 kg

Max Weight on Platter (unsupported)

: 34.0 kg

Number of Std T-Slots

: 6 @ 60°

Spindle

Max Speed

: 490 °/sec

Max Torque

: 149 Nm

Runout Max

: 0.025 mm

Center Height

: 152.40 mm

Pilot Bore Diameter

: 50.800 mm

Through-Bore Diameter

: 36.830 mm

Backlash

: 30 arc-sec

Brake Torque @ 100 psi/6.9 bar

: 475 Nm

Gear Ratio

: 36.578:1

Timing

: 1.5:1

Indexing

Accuracy (±)

: ± 30 arc-sec

Repeatability

: 10 arc-sec

Resolution

: 0.001 °

Worm Gear Dia

: 160 mm

Max Rotation/Step (with rotary control)

: 999.999 °

General

Power Requirement

: 115 VAC ± 10% @ 15 A

Operating Temp (max ambient)

: 38 °C

Air Requirements

Air Pressure Max

: 10.3 bar

Dimensions - Shipping

Export Crate

: 69 cm x 54 cm x 54 cm

Weight

: 93.0 kg
