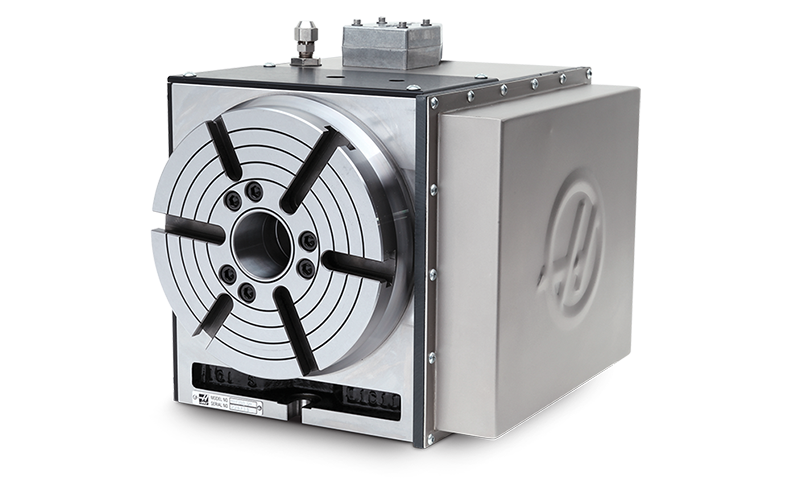

HRT210SP

The HRT SP Series gives you the same features and benefits as the standard HRT Series, but the motor is wrapped behind the table to provide a substantially shorter overall length, and help you fit a lot of table into a small work envelope. Note: SP models do not have a through hole. The bore depth is the thickness of the platter.

Note: Requires a Haas mill with 4th-axis drive and NGC software version 100.19.000.1100 or later for full 4th-axis operation. Stand-alone operation requires a Haas rotary control box shipped after November 10, 2021, with software version 26.32 or newer.

ขอใบเสนอราคา

Add 4-axis capabilities to your machine
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities
Shorter overall length
Made in the USA

Platter

Platter Diameter

: 210 mm

Max Weight on Platter (w/support)

: 74.8 kg

Max Weight on Platter (unsupported)

: 37.4 kg

Number of Std T-Slots

: 6 @ 60°

Spindle

Max Speed

: 100 °/sec

Max Torque

: 285 Nm

Runout Max

: 0.013 mm

Center Height

: 152.40 mm

Backlash

: 30 arc-sec

Brake Torque @ 100 psi/6.9 bar

: 271 Nm

Gear Ratio

: 90:01:00

Timing

: 2:1

Indexing

Accuracy (±)

: ± 15 arc-sec

Repeatability

: 10 arc-sec

Resolution

: 0.001 °

Worm Gear Dia

: 160 mm

Max Rotation/Step (with rotary control)

: 999.999 °

General

Power Requirement

: 115 VAC ± 10% @ 15 A

Operating Temp (max ambient)

: 38 °C

Air Requirements

Air Pressure Max

: 10.3 bar

Dimensions - Shipping

Export Crate

: 54 cm x 42 cm x 54 cm

Weight

: 103.0 kg
