HA5C3-T

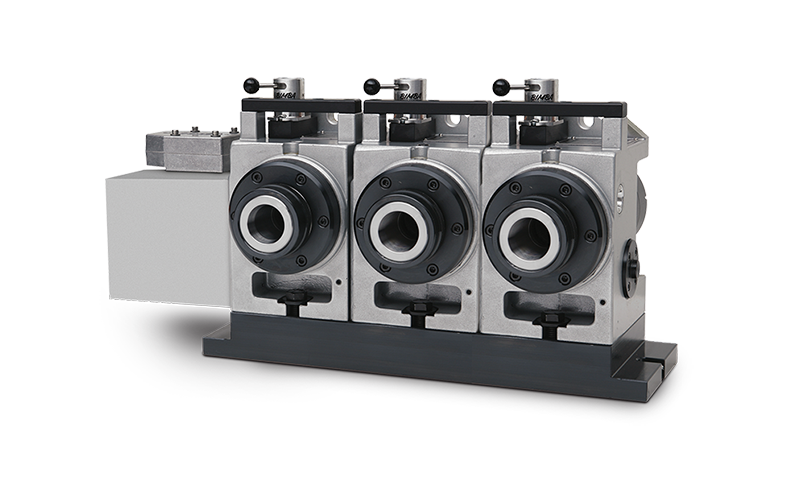

The HA5C3-T is a single-axis rotary unit with three 5C collet noses. The
“-T” indicates the unit has thrust bearings to handle higher axial loads.
Always select the -T version when planning to use a tailstock to support
long workpieces. Tailstock thrust must not exceed 800 lb (3559 N). Clamp your parts using standard 5C collets, or chuck them by threading a
3-jaw chuck to the spindle nose. This unit comes with a manual collet
closer. Optional pneumatic collet closers are also available. Note: Requires a Haas mill with 4th-axis drive and NGC software version 100.19.000.1100 or later for full 4th-axis operation. Stand-alone operation requires a
Haas rotary control box shipped after November 10, 2021, with software version 26.32 or newer.

ขอใบเสนอราคา

Add 4-axis capabilities to your machine
Higher thrust capacity for use with tailstocks
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities
Made in the USA

Platter

Max Weight on Platter (w/support)

: 4.5 kg

Max Weight on Platter (unsupported)

: 2.3 kg

Spindle

Number

: 3

Max Speed

: 200 °/sec

Max Torque

: 34 Nm

Nose Thread

: 2 3/16 in - 10

Runout Max

: 0.010 mm

Center Height

: 149.23 mm

Collet Size

: 5C

Backlash

: 50 arc-sec

Indexing

Accuracy (±)

: ± 60 arc-sec

Repeatability

: 10 arc-sec

Resolution

: 0.001 °

Worm Gear Dia

: 71 mm

Max Rotation/Step (with rotary control)

: 999.999 °

General

Power Requirement

: 115 VAC ± 10% @ 15 A

Operating Temp (max ambient)

: 38 °C

Air Requirements

Air Pressure Max

: 10.3 bar

Motor

Gear Ratio

: 60:01:00

Dimensions - Shipping

Export Crate

: 117 cm x 61 cm x 61 cm

Weight

: 127.0 kg
