HA5C

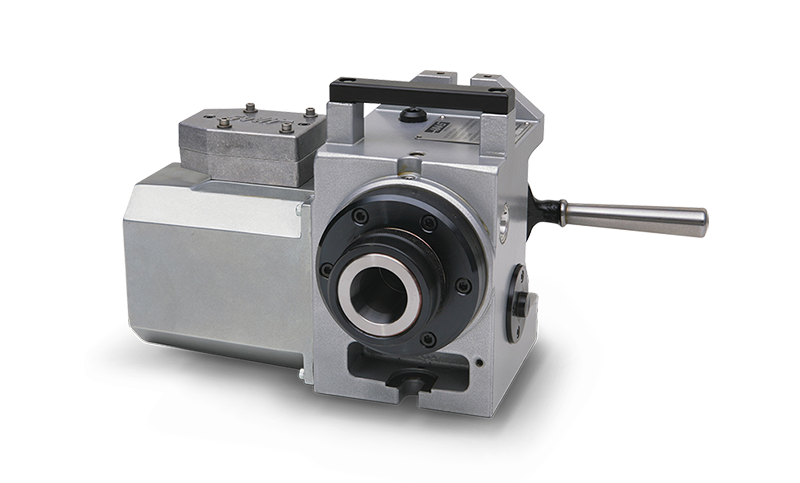

The HA5C is a single-axis rotary unit with a 5C collet nose. Clamp your
parts using standard 5C collets, or chuck them by threading a 3-jaw chuck
to the spindle nose. This unit comes with a manual collet closer. Optional
pneumatic collet closers are also available.Note: Requires a Haas mill with 4th-axis drive and NGC software version 100.19.000.1100 or later for full 4th-axis operation. Stand-alone operation requires a
Haas rotary control box shipped after November 10, 2021, with software version 26.32 or newer.

ขอใบเสนอราคา

Add 4-axis capabilities to your machine
Great for clamping small parts
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities
Made in the USA

Platter

Max Weight on Platter (w/support)

: 9.1 kg

Max Weight on Platter (unsupported)

: 4.5 kg

Spindle

Max Speed

: 410 °/sec

Max Torque

: 81 Nm

Nose Thread

: 2 3/16 in - 10

Runout Max

: 0.010 mm

Center Height

: 101.60 mm

Collet Size

: 5C

Backlash

: 40 arc-sec

Gear Ratio

: 60:01:00

Indexing

Accuracy (±)

: ± 30 arc-sec

Repeatability

: 10 arc-sec

Resolution

: 0.001 °

Worm Gear Dia

: 71 mm

Max Rotation/Step (with rotary control)

: 999.999 °

General

Power Requirement

: 115 VAC ± 10% @ 15 A

Operating Temp (max ambient)

: 38 °C

Air Requirements

Air Pressure Max

: 10.3 bar

Dimensions - Shipping

Export Crate

: 51 cm x 46 cm x 41 cm

Weight

: 25.0 kg
